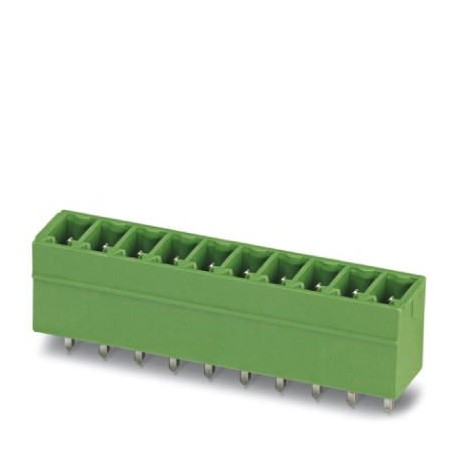

PHOENIX CONTACT MCV 1,5/11-G-3,5 MCV 1,5/11-G-3,5 1843693 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/11-G-3,5 1843693 PHOENIX CONTACT Printed-circuit board connector

MCV 1,5/11-G-3,5

1843693

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Printed-circuit board connector

Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 11, number of rows: 1, number of poles: 11, number of connections: 11, family of articles: MCV 1.5/.. -G, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
