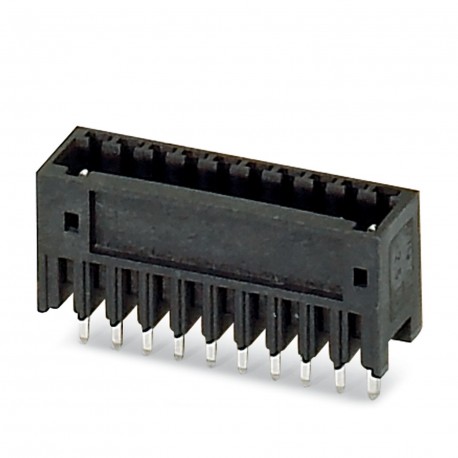

PHOENIX CONTACT MCV 0,5/ 7-G-2,5 THT R44 MCV 0,5/ 7-G-2,5 THT R44 1963803 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 0,5/ 7-G-2,5 THT R44 1963803 PHOENIX CONTACT Feed-through header

MCV 0,5/ 7-G-2,5 THT R44

1963803

PHOENIX CONTACT

220 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: MCV 0.5/.. -G-THT, pitch: 2.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 44 mm wide strap, For user information and design recommendations on Through Hole Reflow technology, see under: "Downloads" PCB headers, nominal cross section: 0.5 mm2, color: black, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: MCV 0,5/..-G-THT, pitch: 2.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: 44 mm wide tape, User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads"

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyMCV 0,5/..-G-THT
Product lineCOMBICON Connectors XS
TypeComponent suitable for through hole reflow
Number of positions7
Pitch2.5 mm
Number of connections7
Number of rows1
Number of potentials7
Mounting flangewithout
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision01
Electrical properties
Nominal current IN4 A
Nominal voltage UN160 V
Contact resistance2 mΩ
Rated voltage (III/3)32 V
Rated surge voltage (III/3)1.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
Mounting
Mounting typeTHR soldering / wave soldering
Pin layoutLinear pinning
Processing notes
ProcessReflow/wave soldering
Moisture Sensitive LevelMSL 3
Classification temperature Tc245 °C
Solder cycles in the reflow3
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1 - 3 µm Ni)
Material data - housing
Color (Housing)black (9005)
Insulating materialPA
Insulating material groupIIIa
CTI according to IEC 60112250
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingdvbtjqggdc.jpg
Pitch2.5 mm
Width [w]19.4 mm
Height [h]13.6 mm
Length [l]8.1 mm
Installed height10.1 mm
Solder pin length [P]3.5 mm
Pin dimensions0.8 x 0.8 mm
PCB design
Pin spacing2.50 mm
Hole diameter1.4 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions12
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions1012Ω
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 250
Rated insulation voltage (III/3)32 V
Rated surge voltage (III/3)1.5 kV
minimum clearance value - non-homogenous field (III/3)0.8 mm
minimum creepage distance (III/3)1.3 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.6 mm
Rated insulation voltage (II/2)160 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)0.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level2.95 kV
Contact resistance R12 mΩ
Contact resistance R22.2 mΩ
Insertion/withdrawal cycles25
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Dimensional drawingckrmjeflhr.jpg
Type of packaging44 mm wide tape
[W] tape width44 mm
[W2] coil overall dimension50.4 mm
[A] coil diameter330 mm
Outer packaging typeDry bag
ESD level(D) electrostatically conductive
SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
