PHOENIX CONTACT MCV 0,5/ 6-G-2,5 THT MCV 0,5/ 6-G-2,5 THT 1963573 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

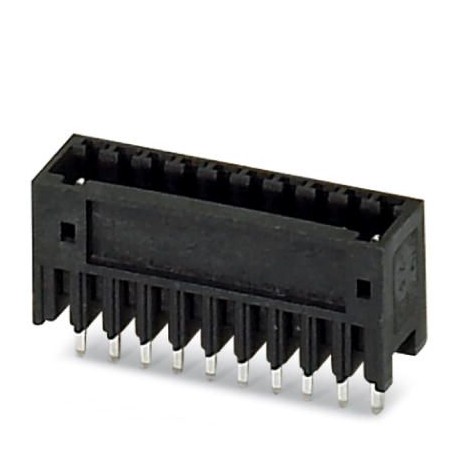

MCV 0,5/ 6-G-2,5 THT 1963573 PHOENIX CONTACT Feed-through header

MCV 0,5/ 6-G-2,5 THT

1963573

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: MCV 0.5/.. -G-THT, pitch: 2.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1963573
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 171 (C-1-2013)
GTIN4017918912383
Weight per Piece (excluding packing)2.440 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]8.1 mm
Width16.9 mm
Pitch2.5 mm
Dimension a12.5 mm
Width [ w ]16.9 mm
Height [ h ]10.1 mm
Height10.1 mm
Length of the solder pin3.5 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing2.50 mm
Length8.1 mm

General

Range of articlesMCV 0,5/..-G-THT
Insulating material groupIIIa
Rated surge voltage (III/3)1.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN4 A
Maximum load current4 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1963573 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
