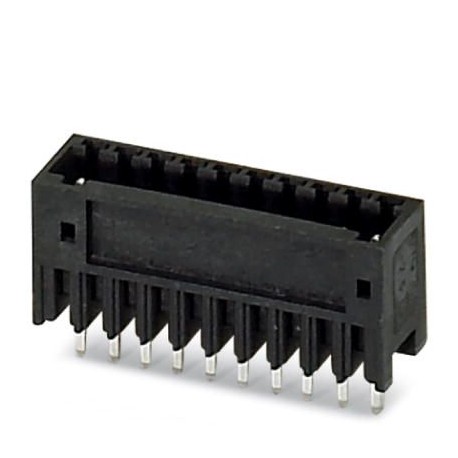

PHOENIX CONTACT MCV 0,5/10-G-2,5 THT MCV 0,5/10-G-2,5 THT 1963612 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 0,5/10-G-2,5 THT 1963612 PHOENIX CONTACT Feed-through header

MCV 0,5/10-G-2,5 THT

1963612

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: MCV 0.5/.. -G-THT, pitch: 2.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1963612
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 171 (C-1-2013)
GTIN4017918912420
Weight per Piece (excluding packing)3.250 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]8.1 mm
Width26.9 mm
Pitch2.5 mm
Dimension a22.5 mm
Width [ w ]26.9 mm
Height [ h ]10.1 mm
Height10.1 mm
Length of the solder pin3.5 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing2.50 mm
Length8.1 mm

General

Range of articlesMCV 0,5/..-G-THT
Insulating material groupIIIa
Rated surge voltage (III/3)1.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN4 A
Maximum load current4 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
