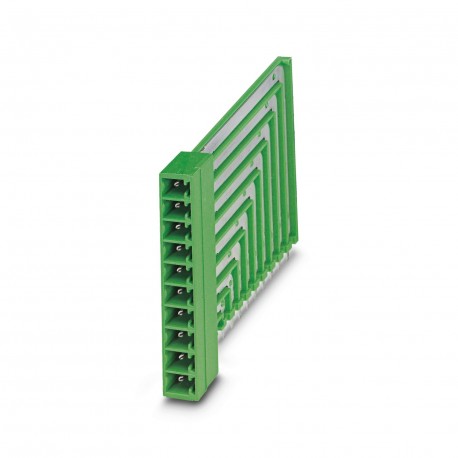

PHOENIX CONTACT MCO 1,5/ 4-GR-3,81 MCO 1,5/ 4-GR-3,81 1861662 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCO 1,5/ 4-GR-3,81 1861662 PHOENIX CONTACT Feed-through header

MCO 1,5/ 4-GR-3,81

1861662

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MCO 1.5/.. -GR, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, locking: without, fixing type: without, packaging type: boxed PCB base socket, nominal cross-section: 1.5 mm2, colour: green, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, product series: MCO 1.5/.. -GR, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, pin length [P]: 3 mm, number of solder pins per potential: 1, plug system: COMBICON MC 1.5, Insertion pin orientation: Orthogonal, locking: none, fixing type: none, packaging type: packed in carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1861662
Packing unit50 pc
Catalog pagePage 231 (C-1-2013)
GTIN4017918133443
Weight per Piece (excluding packing)2.080 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]29.43 mm
Width16.63 mm
Pitch3.81 mm
Dimension a11.43 mm
Width [ w ]16.63 mm
Height [ h ]11 mm
Height11 mm
Length of the solder pin3 mm
Pin dimensions0.9 x 0.32 mm
Length29.43 mm

General

Range of articlesMCO 1,5/..-GR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)125 V
Rated voltage (III/2)160 V
Rated voltage (II/2)200 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Insulating materialPA (PBT)
Flammability rating according to UL 94V0
Colorgreen
Number of positions4

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1861662 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
