> PHOENIX CONTACT > Housing (HS) > 2278319

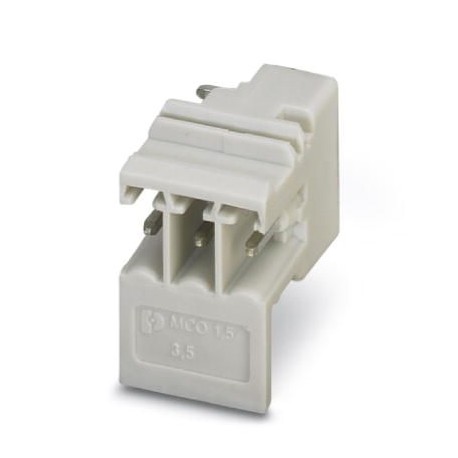

PHOENIX CONTACT MCO 1,5/ 3-G1L-3,5 KMGY MCO 1,5/ 3-G1L-3,5 KMGY 2278319 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCO 1,5/ 3-G1L-3,5 KMGY 2278319 PHOENIX CONTACT Feed-through header

MCO 1,5/ 3-G1L-3,5 KMGY

2278319

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Feed-through header

Printed circuit board base housing, nominal section: 1.5 mm², color: bright gray, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: MCO 1.5/.. -G1L, pitch: 3.5mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5mm, locking: without, packaging type: boxed, item with side pin output on the left

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
