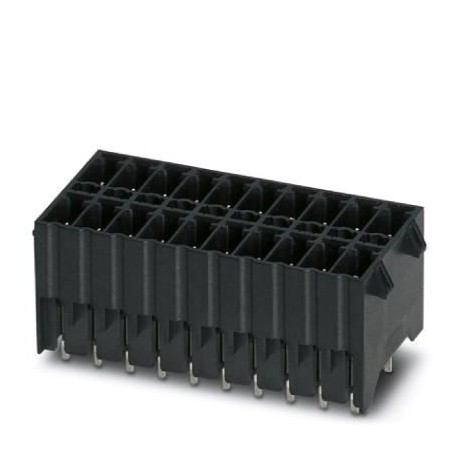

PHOENIX CONTACT MCDNV 1,5/13-G1-3,5 RNP14THR MCDNV 1,5/13-G1-3,5 RNP14THR 1952610 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCDNV 1,5/13-G1-3,5 RNP14THR 1952610 PHOENIX CONTACT Feed-through header

MCDNV 1,5/13-G1-3,5 RNP14THR

1952610

PHOENIX CONTACT

40 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 26, number of rows: 2, number of poles: 13, number of connections: 26, family of articles: MCDNV 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Socket protrusion, packaging type: box-packed, Item with socket protrusion. The pin length is 14mm. For user information and design recommendations on Through Hole Reflow technology, see "Downloads"

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1952610
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 221 (C-1-2013)
GTIN4017918919726
Weight per Piece (excluding packing)53.500 g
Custom tariff number85366930
Country of originBG (Bulgaria)

Dimensions

Length [ l ]15.2 mm
Width49.2 mm
Pitch3.5 mm
Dimension a42 mm
Width [ w ]49.2 mm
Height [ h ]14.7 mm
Height13.3 mm
Length of the solder pin1.4 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing8.30 mm
Length15.2 mm

General

Range of articlesMCDNV 1,5/..-G1-RN-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A (per position)
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions13

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
