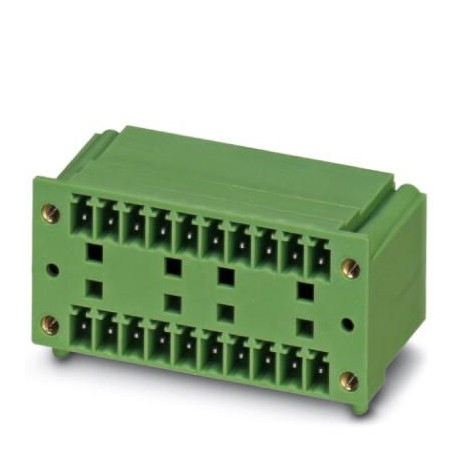

PHOENIX CONTACT MCD 1,5/15-G1F-3,81 MCD 1,5/15-G1F-3,81 1843059 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCD 1,5/15-G1F-3,81 1843059 PHOENIX CONTACT Printed-circuit board connector

MCD 1,5/15-G1F-3,81

1843059

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 30, number of rows: 2, number of poles: 15, number of connections: 30, article family: MCD 1.5/.. -G1F, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: box-packed, In the case of a combination with MCV plug-in parts, an MCVW connector and an MCVR connector must be used, respectively.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1843059
Packing unit50 pc
Catalog pagePage 235 (C-1-2013)
GTIN4017918112257
Weight per Piece (excluding packing)19.240 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]21.9 mm
Width67.54 mm
Pitch3.81 mm
Dimension a53.34 mm
Width [ w ]67.54 mm
Height [ h ]26.2 mm
Height22.7 mm
Length of the solder pin3.5 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing12.70 mm
Length21.9 mm

General

Range of articlesMCD 1,5/..-G1F
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions15

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
