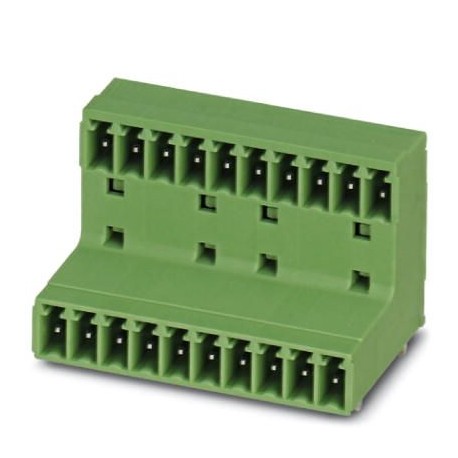

PHOENIX CONTACT MCD 1,5/14-G-3,81 MCD 1,5/14-G-3,81 1830075 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCD 1,5/14-G-3,81 1830075 PHOENIX CONTACT Feed-through header

MCD 1,5/14-G-3,81

1830075

PHOENIX CONTACT

20 Pcs.

Feed-through header Printed circuit board base case, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 28, number of rows: 2, number of poles: 14, number of connections: 28, article family: MCD 1.5/.. -G, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: box-packed, In the case of a combination with MCV plug-in parts, an MCVW connector and an MCVR connector should be used, respectively.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1830075
Packing unit50 pc
Catalog pagePage 234 (C-1-2013)
GTIN4017918113711
Weight per Piece (excluding packing)10.960 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]21.9 mm
Width54.73 mm
Pitch3.81 mm
Dimension a49.53 mm
Width [ w ]54.73 mm
Height [ h ]26.2 mm
Height22.7 mm
Length of the solder pin3.5 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing12.70 mm
Length21.9 mm

General

Range of articlesMCD 1,5/..-G
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions14

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
