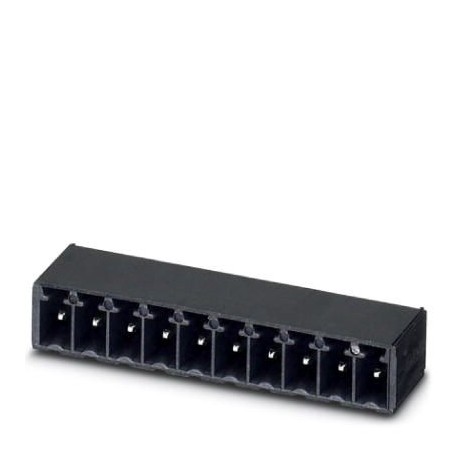

PHOENIX CONTACT MC 1,5/ 9-G-3,81 P14 THR MC 1,5/ 9-G-3,81 P14 THR 1782420 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/ 9-G-3,81 P14 THR 1782420 PHOENIX CONTACT Printed-circuit board connector

MC 1,5/ 9-G-3,81 P14 THR

1782420

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Printed-circuit board connector

Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: MC 1.5/.. -G-THR, pitch: 3.81 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed
