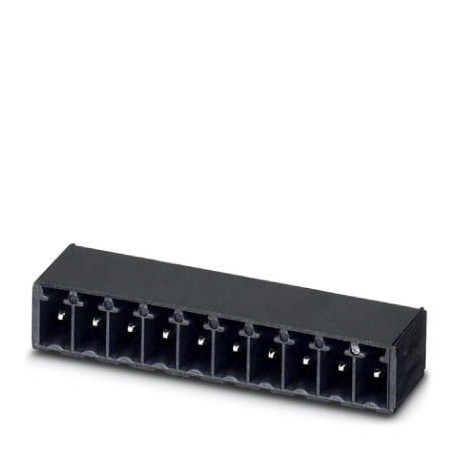

PHOENIX CONTACT MC 1,5/ 6-G-3,81 P26 THRR56 MC 1,5/ 6-G-3,81 P26 THRR56 1782501 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/ 6-G-3,81 P26 THRR56 1782501 PHOENIX CONTACT Printed-circuit board connector

MC 1,5/ 6-G-3,81 P26 THRR56

1782501

PHOENIX CONTACT

470 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: MC 1.5/.. -G-THR, pitch: 3.81 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 56 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1782501
Packing unit470 pc
Minimum order quantity470 pc
Catalog pagePage 212 (C-1-2013)
GTIN4046356550314
Weight per Piece (excluding packing)2.710 g
Custom tariff number85366930
Country of originDE (Germany)

Item properties

Brief article descriptionFeed-through header
Plug-in systemMINI COMBICON
Type of contactMale connector
Range of articlesMC 1,5/..-G-THR
Pitch3.81 mm
Number of positions6
Mounting typeTHR soldering
Pin layoutLinear pinning
Lockingwithout
Number of levels1
Number of connections6
Number of potentials6

Electrical parameters

Rated current8 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1 - 3 µm Ni),
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.3 - 3 µm Ni)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]9.2 mm
Width [ w ]24.25 mm
Height [ h ]9.5 mm
Pitch3.81 mm
Height (without solder pin)6.9 mm
Solder pin [P]2.6 mm
Pin dimensions0.8 x 0.8 mm
Dimension a19.05 mm

Dimensions for PCB design

Hole diameter1.4 mm

Packaging information

Dimensional drawing
Type of packaging56 mm wide tape
Pieces per package470
Denomination packing unitsPcs.
[W] tape width56 mm
[A] coil diameter330 mm
[W2] coil overall dimension62.4 mm
Outer packaging typeTransparent-Bag

Processing notes

ProcessReflow/wave soldering
SpecificationFollowing IPC/JEDEC J-STD-020D.1:2008-03
Following IEC 61760-1:2006-04
Following IEC 60068-2-58:2005-02
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Air clearances and creepage distances

Insulating material groupIIIa
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)250 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1782501 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
