PHOENIX CONTACT MC 1,5/ 5-G-3,5-RN MC 1,5/ 5-G-3,5-RN 1731701 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

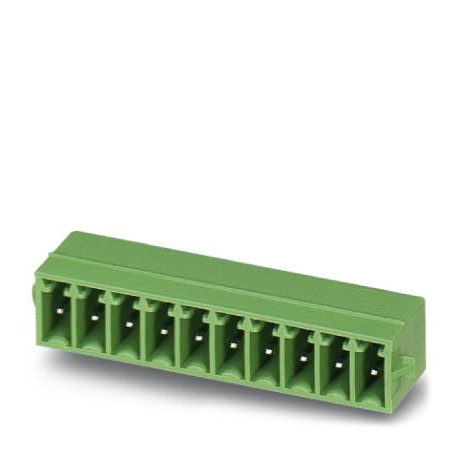

MC 1,5/ 5-G-3,5-RN 1731701 PHOENIX CONTACT Feed-through header

MC 1,5/ 5-G-3,5-RN

1731701

PHOENIX CONTACT

250 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: MC 1.5/.. -G-RN, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Socket protrusion, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1731701
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 225 (C-1-2013)
GTIN4046356159319
Weight per Piece (excluding packing)1.210 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]9.2 mm
Width21.1 mm
Pitch3.5 mm
Dimension a14 mm
Width [ w ]21.1 mm
Height [ h ]10.65 mm
Height7.25 mm
Length of the solder pin3.4 mm
Pin dimensions0.8 x 0.8 mm
Length9.2 mm

General

Range of articlesMC 1,5/..-G-RN
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPBT
Flammability rating according to UL 94V0
Colorgreen
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
