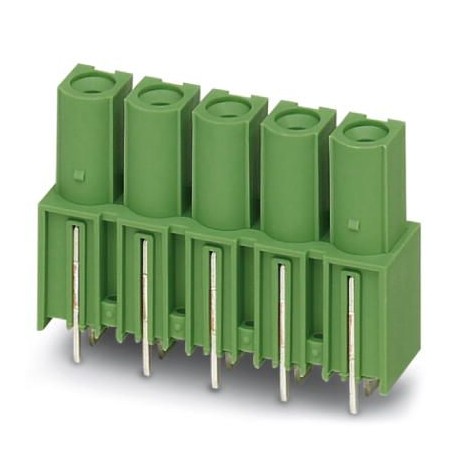

IPCV 16/ 7-G-10,16 1969742 PHOENIX CONTACT Feed-through header

IPCV 16/ 7-G-10,16

1969742

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: IPCV 16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1969742
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 572 (C-1-2013)
GTIN4017918946760
Weight per Piece (excluding packing)25.560 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]13.6 mm
Width71.92 mm
Pitch10.16 mm
Dimension a60.96 mm
Width [ w ]71.92 mm
Height [ h ]36.1 mm
Height32.1 mm
Length of the solder pin4 mm
Pin dimensions0.8 x 1.2 mm
Pin spacing10.16 mm
Length13.6 mm

General

Range of articlesIPCV 16/..-G
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Nominal current IN76 A
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions7

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
