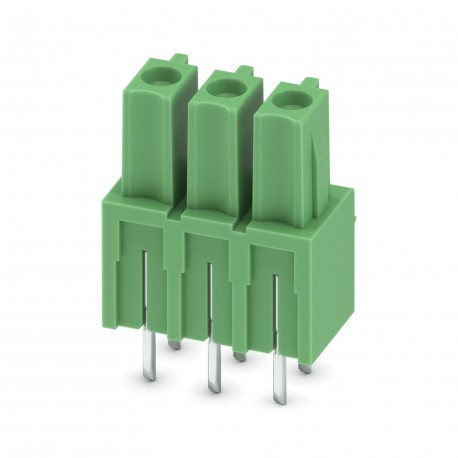

IMCV 1,5/ 3-G-3,81 1875438 PHOENIX CONTACT Feed-through header

IMCV 1,5/ 3-G-3,81

1875438

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: IMCV 1.5/.. -G, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed PCB base strip, nominal cross-section: 1.5 mm2, color: green, rated current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: socket, number of potentials: 3, number of rows: 1, number of poles: 3, number of terminals: 3, article family: IMCV 1,5/.. -G, Pitch: 3.81 mm, Mounting: Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 3.5 mm, Number of Solder Pins per Potential: 2, Plug-in System: COMBICON MC 1.5, Mating Face Alignment: Standard, Locking: Without, Mounting Type: Without, Packaging Type: Packed in a Box

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1875438
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 239 (C-1-2013)
GTIN4017918133931
Weight per Piece (excluding packing)1.150 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]6.85 mm
Width12.22 mm
Pitch3.81 mm
Dimension a7.62 mm
Width [ w ]12.22 mm
Height [ h ]18 mm
Height14.5 mm
Length of the solder pin3.5 mm
Pin dimensions0.62 x 1.12 mm
Pin spacing3.81 mm
Length6.85 mm

General

Range of articlesIMCV 1,5/..-G
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
