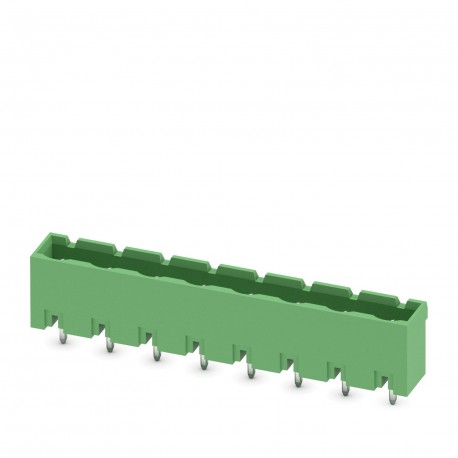

PHOENIX CONTACT GMSTBVA 2,5/ 8-G GMSTBVA 2,5/ 8-G 1766725 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GMSTBVA 2,5/ 8-G 1766725 PHOENIX CONTACT Feed-through header

GMSTBVA 2,5/ 8-G

1766725

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Feed-through header

Printed circuit board base case, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: GMSTBVA 2.5/.. -G, pitch: 7.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
