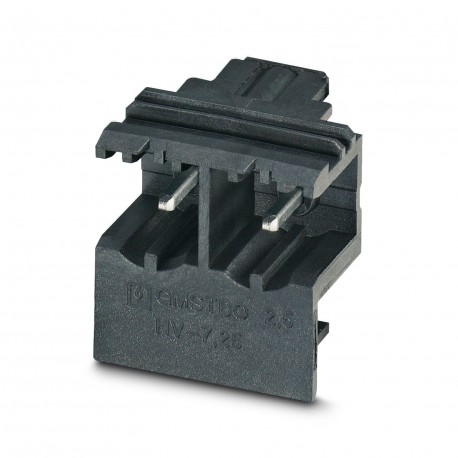

PHOENIX CONTACT GMSTBO 2,5 HV/ 2-GL-7,25 THR GMSTBO 2,5 HV/ 2-GL-7,25 THR 2199867 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GMSTBO 2,5 HV/ 2-GL-7,25 THR 2199867 PHOENIX CONTACT Feed-through header

GMSTBO 2,5 HV/ 2-GL-7,25 THR

2199867

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 16 A, nominal voltage (III/2): 630 V, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: GMSTBO 2.5 HV, pitch: 7.25 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.1 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, packaging type: boxed packed, Item with side pin output on the left PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 16 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: GMSTBO 2,5 HV, pitch: 7.25 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.1 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5 advanced, Pin connector pattern alignment: Orthogonal, locking: without, mounting: without, type of packaging: packed in cardboard, Product with pin output on left side

Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyGMSTBO 2,5 HV
TypeStandard
Number of positions2
Pitch7.25 mm
Number of connections2
Number of rows1
Number of potentials2
Mounting flangewithout
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision02
Electrical properties
Nominal current IN16 A
Nominal voltage UN400 V
Contact resistance1.3 mΩ
Rated voltage (III/3)400 V
Rated surge voltage (III/3)6 kV
Rated voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)6 kV
Mounting
Mounting typeTHR soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
Contact materialCu alloy
Surface characteristicsTin-plated
Material data - housing
Color (Housing)black (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingzzyynvpzer.jpg
Pitch7.25 mm
Width [w]14.95 mm
Height [h]16.84 mm
Length [l]15.65 mm
Installed height21.27 mm
Solder pin length [P]2.1 mm
Pin dimensions1 x 1 mm
PCB design
Pin spacing7.25 mm
Hole diameter1.5 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.5 N
Withdraw strength per pos. approx.3.5 N
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions3
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 10 TΩ
Air clearances and creepage distances
Insulating material groupIIIa
Rated insulation voltage (III/3)400 V
Rated surge voltage (III/3)6 kV
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)6 kV
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level7.3 kV
Contact resistance R11.3 mΩ
Contact resistance R21.5 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 10 TΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage3.31 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 2199867 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.25 mm
Modular spacing connections (EF006827) 7.25 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.5 mm
Length pin (EF006825) 2.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
