View larger
Images are for illustrative purposes only. Please refer to data sheet for details

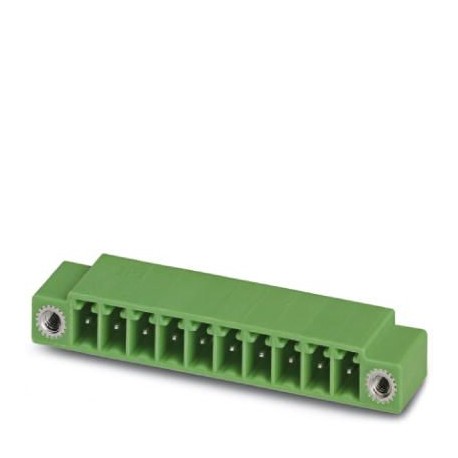

EMC 1,5/ 8-GF-3,81 1897005 PHOENIX CONTACT Feed-through header
EMC 1,5/ 8-GF-3,81
1897005
PHOENIX CONTACT
50 Pcs.
Feed-through header
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1897005 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 223 (C-1-2013) |
| GTIN | 4017918166144 |
| Weight per Piece (excluding packing) | 3.810 g |
| Custom tariff number | 85366930 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 10.7 mm |
|---|---|
| Pitch | 3.81 mm |
| Dimension a | 26.67 mm |
| Height | 7 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Length | 10.7 mm |
General
| Range of articles | EMC 1,5/..-GF |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Maximum load current | 8 A |
| Insulating material | PBT |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 8 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
