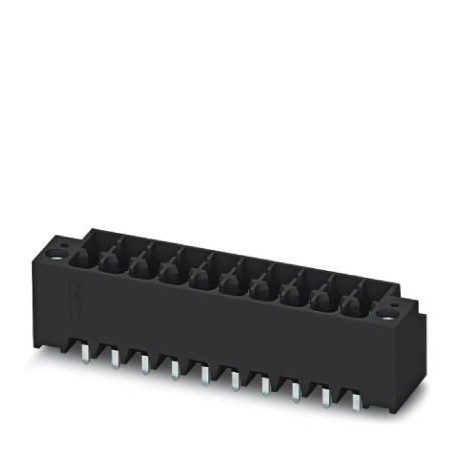

DMCV 1,5/20-G1F-3,5-LR P20THR 1787577 PHOENIX CONTACT Printed-circuit board connector

DMCV 1,5/20-G1F-3,5-LR P20THR

1787577

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 40, number of rows: 2, number of poles: 20, number of connections: 40, family of articles: DMCV 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1787577
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356597197
Weight per Piece (excluding packing)2.220 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]10.6 mm
Width77 mm
Pitch3.5 mm
Dimension a66.5 mm
Width [ w ]77 mm
Height [ h ]12 mm
Height10 mm
Length of the solder pin2 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing5.50 mm
Length10.6 mm

General

Range of articlesDMCV 1,5/..-G1F-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
