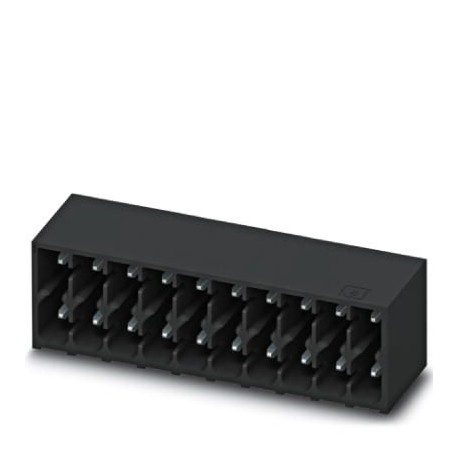

PHOENIX CONTACT DMC 1,5/ 6-G1-3,5 P20THR DMC 1,5/ 6-G1-3,5 P20THR 1786879 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMC 1,5/ 6-G1-3,5 P20THR 1786879 PHOENIX CONTACT Printed-circuit board connector

DMC 1,5/ 6-G1-3,5 P20THR

1786879

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 12, number of rows: 2, number of poles: 6, number of connections: 12, family of articles: DMC 1.5/.. -G1-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, locking: without, fastening type: without, packaging type: boxed, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1786879
Packing unit50 pc
Catalog pagePage 186 (C-1-2013)
GTIN4046356595100
Weight per Piece (excluding packing)3.000 g
Custom tariff number85366930
Country of originCN (China)

Dimensions

Length [ l ]11.6 mm
Width21.8 mm
Pitch3.5 mm
Dimension a17.5 mm
Width [ w ]21.8 mm
Height [ h ]12.8 mm
Height10.8 mm
Length of the solder pin2 mm
Pin dimensions0.8 x 0.8 mm
Pin spacing2.50 mm
Length11.6 mm

General

Range of articlesDMC 1,5/..-G1-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1786879 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 12
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
