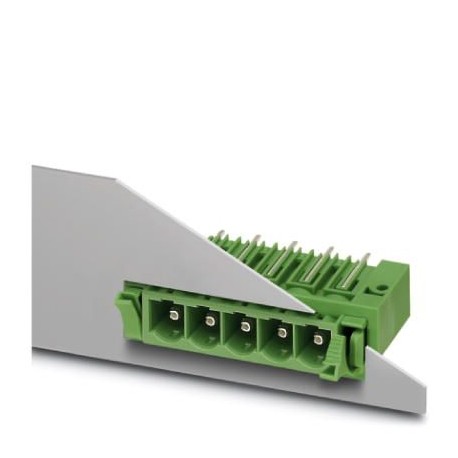

DFK-PCV 6-16/ 7-G-10,16 1702141 PHOENIX CONTACT Feed-through header

DFK-PCV 6-16/ 7-G-10,16

1702141

PHOENIX CONTACT

10 Pcs.

Feed-through header Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Male, Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, number of connections: 7, family of articles: DFK-PCV 6-16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4.2 mm, Stecksystem: POWER COMBICON 16, Lock: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1702141
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 577 (C-1-2013)
GTIN4046356031059
Weight per Piece (excluding packing)34.790 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]19 mm
Width106.48 mm
Pitch10.16 mm
Dimension a60.96 mm
Width [ w ]106.48 mm
Height [ h ]20.3 mm
Height34 mm
Length of the solder pin4.2 mm
Pin dimensions1 x 1.2 mm
Pin spacing10.16 mm
Length19 mm

General

Range of articlesDFK-PCV 6-16/..-G
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions7

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
