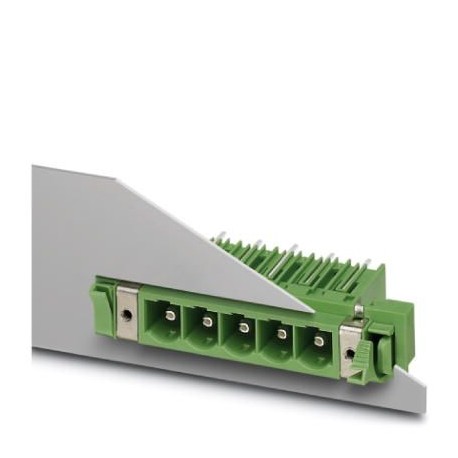

PHOENIX CONTACT DFK-PCV 6-16/ 2-GF-10,16 DFK-PCV 6-16/ 2-GF-10,16 1702251 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-PCV 6-16/ 2-GF-10,16 1702251 PHOENIX CONTACT Feed-through header

DFK-PCV 6-16/ 2-GF-10,16

1702251

PHOENIX CONTACT

10 Pcs.

Feed-through header Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Male, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, number of connections: 2, family of articles: DFK-PCV 6-16/.. -GF, pitch: 10.16 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, Stecksystem: POWER COMBICON 16, Locking: Screw locking, packaging type:boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1702251
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 577 (C-1-2013)
GTIN4046356031080
Weight per Piece (excluding packing)14.120 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]19 mm
Width55.68 mm
Pitch10.16 mm
Dimension a10.16 mm
Width [ w ]55.68 mm
Height [ h ]34 mm
Height34 mm
Pin dimensions1 x 1.2 mm
Pin spacing10.16 mm
Length19 mm

General

Range of articlesDFK-PCV 6-16/..-GF
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
