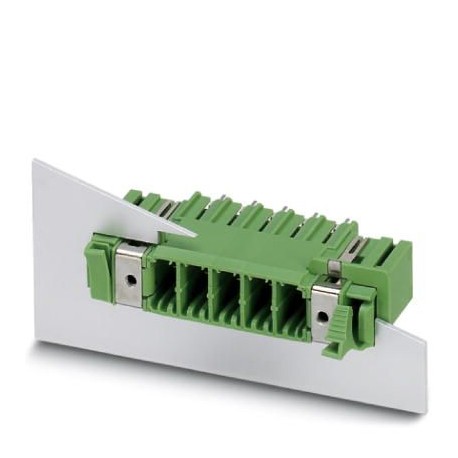

PHOENIX CONTACT DFK-PCV 5/11-GF-7,62 DFK-PCV 5/11-GF-7,62 1716483 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-PCV 5/11-GF-7,62 1716483 PHOENIX CONTACT Printed-circuit board connector

DFK-PCV 5/11-GF-7,62

1716483

PHOENIX CONTACT

10 Pcs.

Printed-circuit board connector Wall pass-through housing, nominal section: 6 mm², color: green, nominal current: 41 A, dimensioning voltage (III/2): 630 V, contact surface: Tin, contact type: Male, Number of potentials: 11, Number of rows: 1, Number of poles per row: 11, number of connections: 11, family of articles: DFK-PCV 5/.. -GF, pitch: 7.62 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 5 mm, Stecksystem: POWER COMBICON 5, Locking: Screw locking, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1716483
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 547 (C-1-2013)
GTIN4046356137102
Weight per Piece (excluding packing)27.760 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]19.54 mm
Width118.44 mm
Pitch7.62 mm
Dimension a76.2 mm
Width [ w ]118.44 mm
Height [ h ]21.1 mm
Height29.25 mm
Length of the solder pin5 mm
Pin dimensions0.8 x 1 mm
Pin spacing7.62 mm
Length19.54 mm

General

Range of articlesDFK-PCV 5/..-GF
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)800 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Maximum load current41 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions11

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
