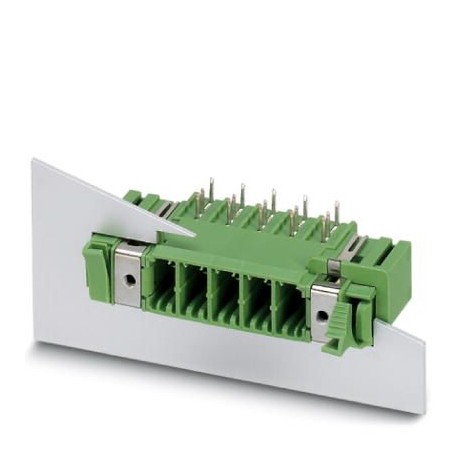

PHOENIX CONTACT DFK-PC 5/ 8-GFU-7,62 DFK-PC 5/ 8-GFU-7,62 1727977 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-PC 5/ 8-GFU-7,62 1727977 PHOENIX CONTACT Printed-circuit board connector

DFK-PC 5/ 8-GFU-7,62

1727977

PHOENIX CONTACT

10 Pcs.

Printed-circuit board connector Wall pass-through housing, nominal section: 6 mm², color: green, nominal current: 41 A, dimensioning voltage (III/2): 630 V, contact surface: Tin, contact type: Male, Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, number of connections: 8, family of articles: DFK-PC 5/.. -GFU, pitch: 7.62 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 4.26 mm, Stecksystem: POWER COMBICON 5, Locking: Screw locking, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1727977
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 545 (C-1-2013)
GTIN4046356136228
Weight per Piece (excluding packing)26.720 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]29.25 mm
Width95.58 mm
Pitch7.62 mm
Dimension a53.34 mm
Width [ w ]95.58 mm
Height [ h ]21.1 mm
Height19.54 mm
Length of the solder pin4.26 mm
Pin dimensions0.8 x 1 mm
Pin spacing7.62 mm
Length29.25 mm

General

Range of articlesDFK-PC 5/..-GFU
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)800 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Maximum load current41 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
