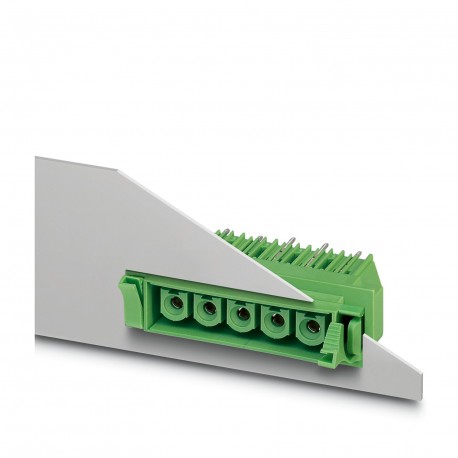

DFK-IPCV 16/ 9-G-10,16 1703124 PHOENIX CONTACT Feed-through header
DFK-IPCV 16/ 9-G-10,16
1703124
PHOENIX CONTACT
10 Pcs.
Feed-through header
Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: DFK-IPCV 16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4.1 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Through socket, nominal cross-section: 16 mm2, colour: green, nominal current: 76 A, reference voltage (III/2): 1000 V, contact area: Ag, contact type: Female connector, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, article range: DFK-IPCV 16/.. -G, pitch: 10.16 mm, mounting: Wave welding, spindle plane: Linear pinout, spindle length [P]: 4.1 mm, number of pins per potential: 3, Plug-in system: COMBICON PC 16, Orientation of the plug-in pattern: Standard, locking: without, fastening type: without, packaging type: packed in a carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1703124 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 581 (C-1-2013) |
| GTIN | 4046356031714 |
| Weight per Piece (excluding packing) | 40.200 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Dimensions
| Length [ l ] | 22 mm |
|---|---|
| Pitch | 10.16 mm |
| Dimension a | 81.28 mm |
| Height [ h ] | 34.55 mm |
| Height | 34.55 mm |
| Length of the solder pin | 4.1 mm |
| Pin dimensions | 0.8 x 1.2 mm |
| Pin spacing | 10.16 mm |
| Length | 22 mm |
General
| Range of articles | DFK-IPCV 16/..-G |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
| Rated voltage (III/3) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Maximum load current | 76 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 9 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 9 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 10.16 mm |
| Modular spacing connections (EF006827) | 10.16 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Silver |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 4.1 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
