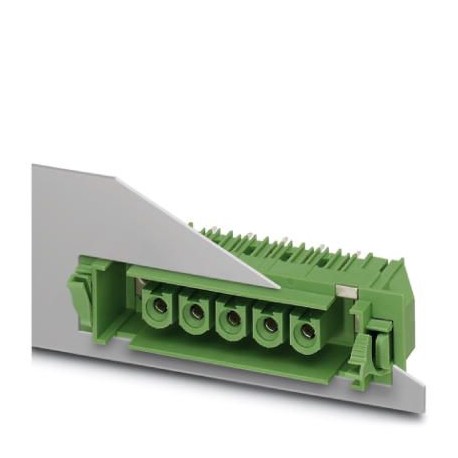

DFK-IPCV 16/ 7-GF-10,16 1703263 PHOENIX CONTACT Feed-through header

DFK-IPCV 16/ 7-GF-10,16

1703263

PHOENIX CONTACT

10 Pcs.

Feed-through header Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Female connection, Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, number of connections: 7, family of articles: DFK-IPCV 16/.. -GF, pitch: 10.16 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 4.1 mm, Stecksystem: POWER COMBICON 16, Locking: Screw locking, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703263
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 581 (C-1-2013)
GTIN4046356031776
Weight per Piece (excluding packing)36.890 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]22 mm
Pitch10.16 mm
Dimension a60.96 mm
Height [ h ]34.55 mm
Height34.55 mm
Length of the solder pin4.1 mm
Pin dimensions0.8 x 1.2 mm
Pin spacing10.16 mm
Length22 mm

General

Range of articlesDFK-IPCV 16/..-GF
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions7

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
