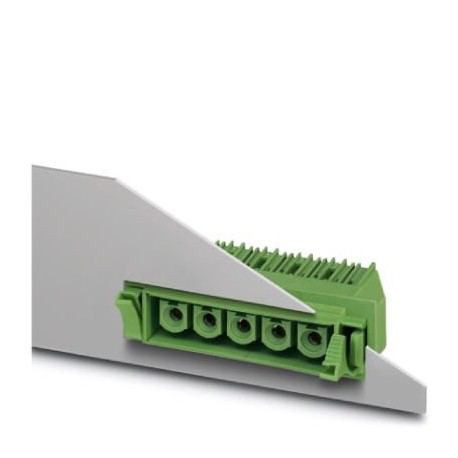

PHOENIX CONTACT DFK-IPC 16/ 9-G-10,16 DFK-IPC 16/ 9-G-10,16 1702484 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-IPC 16/ 9-G-10,16 1702484 PHOENIX CONTACT Feed-through header

DFK-IPC 16/ 9-G-10,16

1702484

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Feed-through header

Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: DFK-IPC 16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4.1 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
