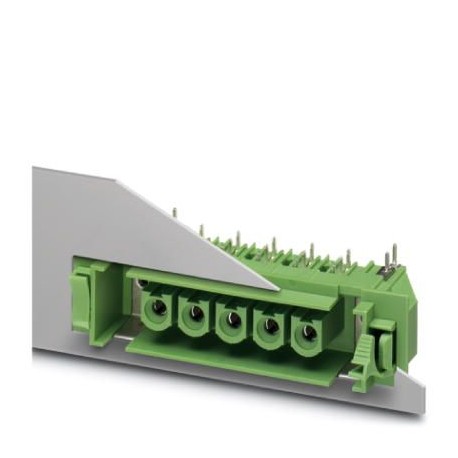

DFK-IPC 16/ 3-GFU-SH-10,16 1702905 PHOENIX CONTACT Feed-through header

DFK-IPC 16/ 3-GFU-SH-10,16

1702905

PHOENIX CONTACT

10 Pcs.

Feed-through header Wall pass-through housing, nominal section: 16 mm², color: green, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Female connection, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, family of articles: DFK-IPC 16/.. -GFU-SH, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4.1 mm, Stecksystem: POWER COMBICON 16, Locking: Screw locking, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1702905
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 581 (C-1-2013)
GTIN4046356031493
Weight per Piece (excluding packing)14.850 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]34.55 mm
Width71.56 mm
Pitch10.16 mm
Dimension a20.32 mm
Width [ w ]71.56 mm
Height [ h ]22 mm
Height19.9 mm
Length of the solder pin4.1 mm
Pin dimensions0.8 x 1.2 mm
Pin spacing10.16 mm
Length34.55 mm

General

Range of articlesDFK-IPC 16/..-GFU-SH
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
