PHOENIX CONTACT CCV 2,5/ 9-G-5,08 P26THRR88 CCV 2,5/ 9-G-5,08 P26THRR88 1955594 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

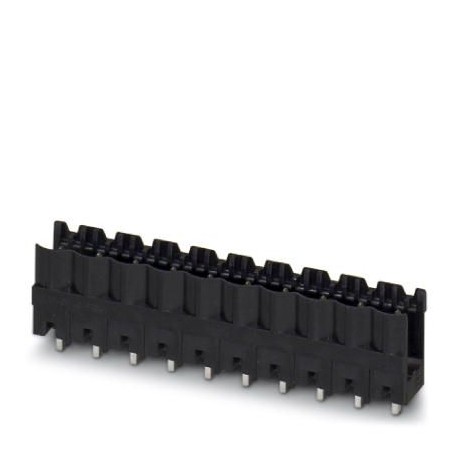

CCV 2,5/ 9-G-5,08 P26THRR88 1955594 PHOENIX CONTACT Printed-circuit board connector

CCV 2,5/ 9-G-5,08 P26THRR88

1955594

PHOENIX CONTACT

140 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: CCV 2.5/.. -G, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 88 mm wide strap, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1955594
Packing unit140 pc
Minimum order quantity140 pc
NoteMade to Order (non-returnable)
Catalog pagePage 240 (CC-2009)
GTIN4017918926359
Weight per Piece (excluding packing)7.950 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]8.57 mm
Width45.32 mm
Pitch5.08 mm
Dimension a40.64 mm
Width [ w ]45.32 mm
Height [ h ]14.6 mm
Height12 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Length8.57 mm

General

Range of articlesCCV 2,5/..-G
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A (per position)
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions9

General information

Type of noteDetails for soldering processes
NoteProcessing using reflow processes in compliance with IEC 60068-2-58 or DIN EN 61760-1 (latest version)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
