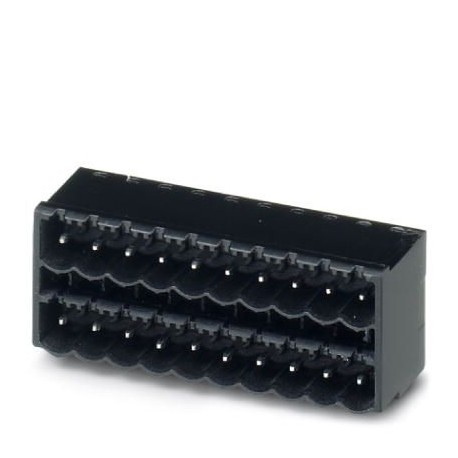

CCDN 2,5/10-G1 P26 THR 1734355 PHOENIX CONTACT Printed-circuit board connector

CCDN 2,5/10-G1 P26 THR

1734355

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 20, number of rows: 2, number of poles: 10, number of connections: 20, family of articles: CCDN 2.5/.. -G1-THR, pitch: 5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1734355
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 306 (C-1-2013)
GTIN4046356177221
Weight per Piece (excluding packing)12.350 g
Custom tariff number85366930
Country of originSK (Slovakia)

Dimensions

Length [ l ]17.6 mm
Width52.8 mm
Pitch5 mm
Dimension a45 mm
Width [ w ]52.8 mm
Height [ h ]22.7 mm
Height20.1 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Pin spacing5.00 mm
Length17.6 mm

General

Range of articlesCCDN 2,5/..-G1-THR
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
