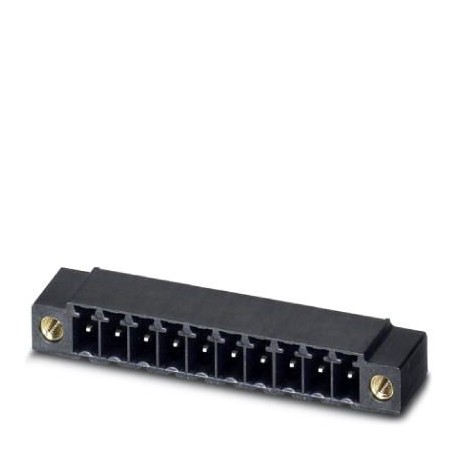

PHOENIX CONTACT MC 1,5/ 9-GF-3,81 P20 THRR72 MC 1,5/ 9-GF-3,81 P20 THRR72 1782093 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/ 9-GF-3,81 P20 THRR72 1782093 PHOENIX CONTACT Printed-circuit board connector

MC 1,5/ 9-GF-3,81 P20 THRR72

1782093

PHOENIX CONTACT

380 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 9, family of articles: MC 1.5/.. -GF-THR, pitch: 3.81 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: 72 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1782093
Packing unit380 pc
Minimum order quantity380 pc
NoteMade to Order (non-returnable)
Catalog pagePage 211 (C-1-2013)
GTIN4046356550673
Weight per Piece (excluding packing)2.150 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]9.2 mm
Width44.68 mm
Pitch3.81 mm
Dimension a30.48 mm
Width [ w ]44.68 mm
Height [ h ]8.9 mm
Height6.9 mm
Length of the solder pin2 mm
Length9.2 mm

General

Range of articlesMC 1,5/..-GF-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions9

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
