View larger
Images are for illustrative purposes only. Please refer to data sheet for details

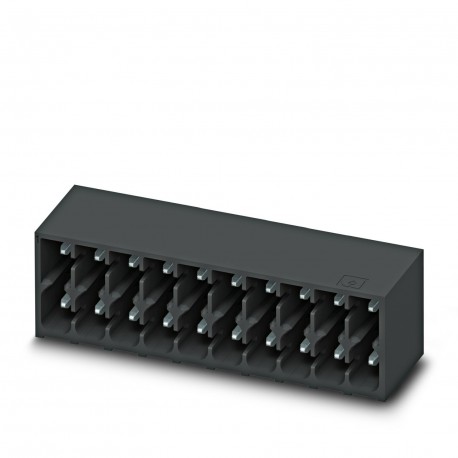

DMC 1,5/11-G1-3,5 P20THR R72 1706049 PHOENIX CONTACT Printed-circuit board connector
DMC 1,5/11-G1-3,5 P20THR R72
1706049
PHOENIX CONTACT
180 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, family of articles: DMC 1.5/.. -G1-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 72 mm wide strap
PCB base socket, nominal cross-section: 1.5 mm2, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, product series: DMC 1.5/.. -G1-THR, pitch: 3.5 mm, mounting: TTHR / wave soldering, pin layout: Linear pinning, pin length [P]: 2 mm, number of solder pins per potential: 1, plug system: COMBICON DFMC 1.5, Insertion pin orientation: Standard, locking: none, fastening type: none, packaging type: Tape width 72 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1706049 |
|---|---|
| Packing unit | 180 pc |
| Minimum order quantity | 180 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 188 (C-1-2013) |
| GTIN | 4046356838504 |
| Weight per Piece (excluding packing) | 2.220 g |
| Custom tariff number | 85366930 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 11.6 mm |
|---|---|
| Width | 39.3 mm |
| Pitch | 3.5 mm |
| Dimension a | 35 mm |
| Width [ w ] | 39.3 mm |
| Height [ h ] | 12.8 mm |
| Height | 10.8 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Pin spacing | 2.50 mm |
| Length | 11.6 mm |
General
| Range of articles | DMC 1,5/..-G1-THR |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Maximum load current | 8 A |
| Insulating material | LCP |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 11 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 22 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 2 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Other |
