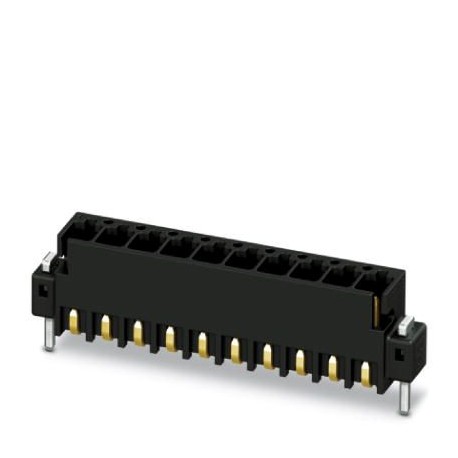

PHOENIX CONTACT MCV 0,5/ 2-G-2,54 SMDR24C2 MCV 0,5/ 2-G-2,54 SMDR24C2 1706093 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 0,5/ 2-G-2,54 SMDR24C2 1706093 PHOENIX CONTACT Printed-circuit board connector

MCV 0,5/ 2-G-2,54 SMDR24C2

1706093

PHOENIX CONTACT

315 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: Gold, contact type: Male, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, number of connections: 2, family of articles: MCV 0.5/.. -G-SMD, pitch: 2.54 mm, mounting: SMD welding, pin arrangement: Linear pad geometry, pin length [P]: 2 mm, Stecksystem: MICRO COMBICON - FMC 0.5, Lock: without, packaging type: 24 mm wide strap, Fixed last pole coding, can be combined with FMC 0.5/...-ST-2.54 C2 connector

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1706093
Packing unit315 pc
Minimum order quantity315 pc
NoteMade to Order (non-returnable)
Catalog pagePage 179 (C-1-2013)
GTIN4046356842457
Weight per Piece (excluding packing)2.220 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]4.85 mm
Width9.66 mm
Pitch2.54 mm
Dimension a2.54 mm
Width [ w ]9.66 mm
Height [ h ]7.1 mm
Height7.1 mm
Length of the solder pin2 mm
Pin dimensions0.64 x 0.64 mm
Length4.85 mm

General

Range of articlesMCV 0,5/..-G-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
