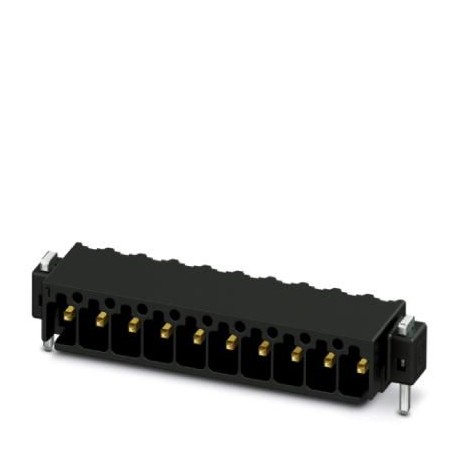

PHOENIX CONTACT MC 0,5/14-G-2,54 SMDR56C1 MC 0,5/14-G-2,54 SMDR56C1 1706135 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 0,5/14-G-2,54 SMDR56C1 1706135 PHOENIX CONTACT Printed-circuit board connector

MC 0,5/14-G-2,54 SMDR56C1

1706135

PHOENIX CONTACT

465 Pcs.

Printed-circuit board connector Base housing printed circuit board, nominal section: 0.5 mm², colour: black, rated current: 6 A, sizing voltage (III/2): 160 V, surface contacts: Gold, contact type: Male, Number of potentials: 14, Number of rows: 1, Number of poles per row: 14, number of connections: 14, article family: MC 0.5/.. -G-SMD, pitch: 2.54 mm, mounting: SMD welding, pin arrangement: Linear pad geometry, Stecksystem: MICRO COMBICON - FMC 0.5, Locking: sin, packing type: 56 mm wide strap, Fixed coding of the first pole, can be combined with FMC 0.5/...-ST-2.54 C1 connector

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1706135
Packing unit465 pc
Minimum order quantity465 pc
NoteMade to Order (non-returnable)
Catalog pagePage 179 (C-1-2013)
GTIN4046356842129
Weight per Piece (excluding packing)2.220 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]7.1 mm
Width40.14 mm
Pitch2.54 mm
Dimension a33.02 mm
Width [ w ]40.14 mm
Height [ h ]4.85 mm
Height4.85 mm
Pin dimensions0.64 x 0.64 mm
Length7.1 mm

General

Range of articlesMC 0,5/..-G-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions14

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
