View larger
Images are for illustrative purposes only. Please refer to data sheet for details

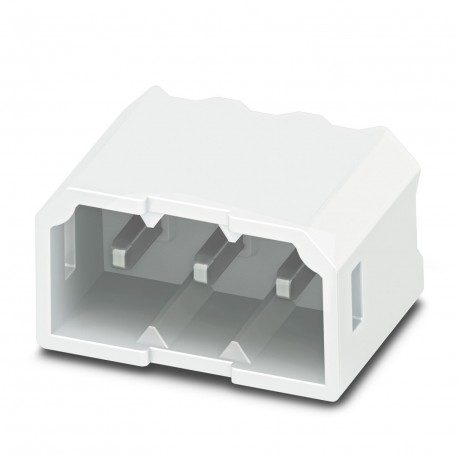

PTSM 0,5/ 4-HH-2,5-THR WH R32 1814867 PHOENIX CONTACT Feed-through header
PTSM 0,5/ 4-HH-2,5-THR WH R32
1814867
PHOENIX CONTACT
500 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 0.5 mm², color: white signals, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: PTSM 0.5/.. -HH-THR WH, pitch: 2.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.1 mm, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 32 mm wide strap
PCB socket, nominal cross-section: 0.5 mm2, colour: signal white, rated current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, product series: PTSM 0.5/.. -HH-THR WH, Pitch: 2.5 mm, Mounting: TTHR / Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 2.1 mm, Number of Solder Pins per Potential: 1, Plug System: COMBICON PTSM, Insertion Pin Orientation: Standard, Locking: Absent, Fixing Type: None, Package Type: Tape Width 32 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1814867 |
|---|---|
| Packing unit | 500 pc |
| Minimum order quantity | 500 pc |
| Catalog page | Page 397 (C-1-2013) |
| GTIN | 4046356760614 |
| Weight per Piece (excluding packing) | 1.370 g |
| Custom tariff number | 85366930 |
| Country of origin | IN (India) |
Dimensions
| Length [ l ] | 7.5 mm |
|---|---|
| Width | 11.7 mm |
| Pitch | 2.5 mm |
| Dimension a | 7.5 mm |
| Width [ w ] | 11.7 mm |
| Height [ h ] | 7 mm |
| Height | 5 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 0.6 x 0.6 mm |
| Pin spacing | 2.50 mm |
| Length | 7.5 mm |
General
| Range of articles | PTSM 0,5/..-HH-THR WH |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 125 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 320 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 6 A |
| Maximum load current | 6 A |
| Insulating material | HT PA |
| Flammability rating according to UL 94 | V0 |
| Color | white |
| Number of positions | 4 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141109eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 2.5 mm |
| Modular spacing connections (EF006827) | 2.5 mm |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2.1 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Other |
