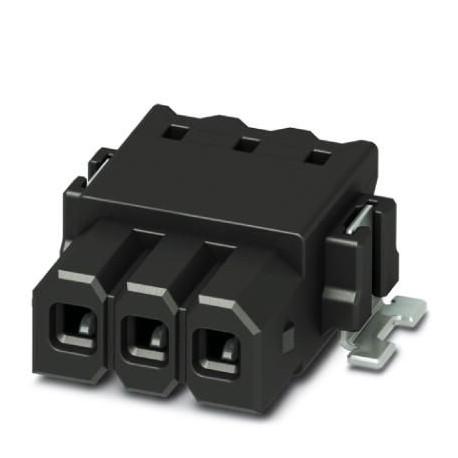

PTSM 0,5/ 3-HHI0-2,5-SMD R44 1815138 PHOENIX CONTACT Feed-through header

PTSM 0,5/ 3-HHI0-2,5-SMD R44

1815138

PHOENIX CONTACT

500 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: PTSM 0.5/.. -HHI-SMD, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: 44 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1815138
Packing unit500 pc
Minimum order quantity500 pc
NoteMade to Order (non-returnable)
Catalog pagePage 61 (C-1-2013)
GTIN4046356761345
Weight per Piece (excluding packing)1.980 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]14 mm
Width12.3 mm
Pitch2.5 mm
Dimension a5 mm
Width [ w ]12.3 mm
Height [ h ]5 mm
Height5 mm
Length14 mm

General

Range of articlesPTSM 0,5/..-HHI-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions3
