> PHOENIX CONTACT > PCB Connectors (PCC) > 1706169

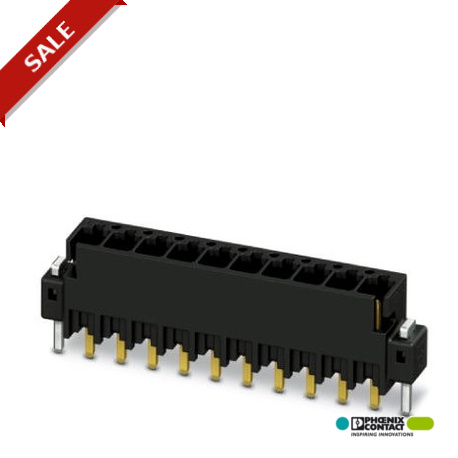

PHOENIX CONTACT MCV 0,5/ 2-G-2,54 P20THRR24C2 MCV 0,5/ 2-G-2,54 P20THRR24C2 1706169 PHOENIX CONTACT Header, Nominal current: 6 A, Rated voltage (III/2): 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 0,5/ 2-G-2,54 P20THRR24C2 1706169 PHOENIX CONTACT Header, Nominal current: 6 A, Rated voltage (III/2): 1..

MCV 0,5/ 2-G-2,54 P20THRR24C2

1706169

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 2.54 mm, Color: black, Contact surface: Gold, Mounting: Taped SMD/THT/THR components, Fixed coding of the last position, can be combined with the FMC 0,5/...-ST-2,54 C2 connector

Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: Gold, contact type: Male, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, number of connections: 2, family of articles: MCV 0.5/.. -G-THR, pitch: 2.54 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, Stecksystem: MICRO COMBICON - FMC 0.5, Lock: without, packaging type: 24 mm wide strap, Fixed last pole coding, can be combined with FMC 0.5/...-ST-2.54 C2 connector

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
