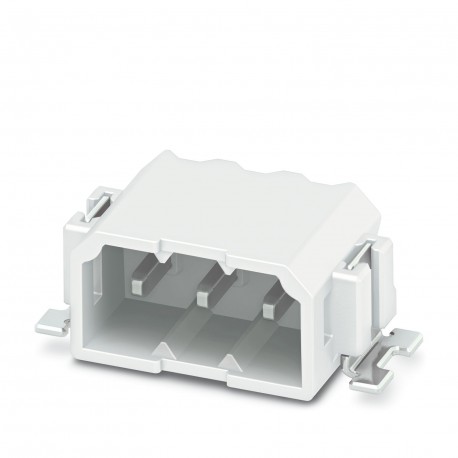

PTSM 0,5/ 6-HH0-2,5-SMD WH R44 1814951 PHOENIX CONTACT Feed-through header

PTSM 0,5/ 6-HH0-2,5-SMD WH R44

1814951

PHOENIX CONTACT

600 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: white signals, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: PTSM 0.5/.. -HH-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 44 mm wide strap PCB header, nominal cross-section: 0.5 mm2, colour: safety white, nominal current: 6 A, reference voltage (III/2): 160 V, contact area: Sn, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, range of articles: PTSM 0.5/.. -HH-SMD WH, Pitch: 2.5 mm, Mounting: SMD crimping, Pin Plane: Linear pad geometry, Number of pins per potential: 1, Plug-in system: COMBICON PTSM, Orientation of the plug-in pattern: Standard, Locking: without, Fastening type: without, Packaging type: 44 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1814951
Packing unit600 pc
Minimum order quantity600 pc
Catalog pagePage 397 (C-1-2013)
GTIN4046356761161
Weight per Piece (excluding packing)1.660 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]9.5 mm
Width20.6 mm
Pitch2.5 mm
Dimension a12.5 mm
Width [ w ]20.6 mm
Height [ h ]5 mm
Height5 mm
Length9.5 mm

General

Range of articlesPTSM 0,5/..-HH-SMD WH
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)125 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialHT PA
Flammability rating according to UL 94V0
Colorwhite
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1814951 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
