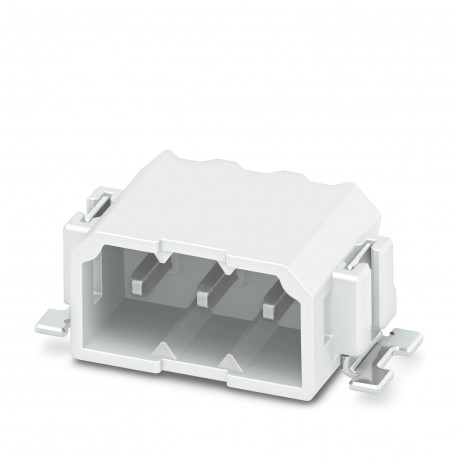

PTSM 0,5/ 4-HH0-2,5-SMD WH R32 1814935 PHOENIX CONTACT Feed-through header

PTSM 0,5/ 4-HH0-2,5-SMD WH R32

1814935

PHOENIX CONTACT

600 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: white signals, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: PTSM 0.5/.. -HH-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: 32 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1814935
Packing unit600 pc
Minimum order quantity600 pc
Catalog pagePage 397 (C-1-2013)
GTIN4046356761147
Weight per Piece (excluding packing)1.340 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]9.5 mm
Width15.6 mm
Pitch2.5 mm
Dimension a7.5 mm
Width [ w ]15.6 mm
Height [ h ]5 mm
Height5 mm
Length9.5 mm

General

Range of articlesPTSM 0,5/..-HH-SMD WH
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)125 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialHT PA
Flammability rating according to UL 94V0
Colorwhite
Number of positions4

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
