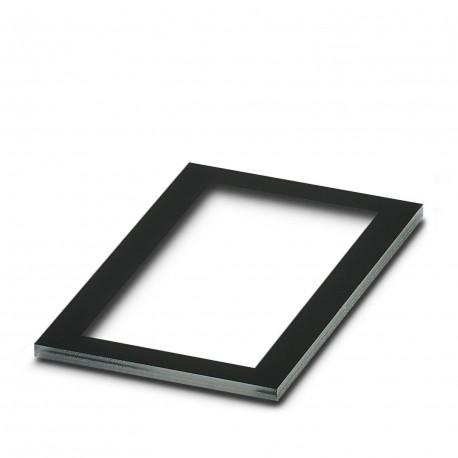

HCS-C MINI-P WIN 2,0 FR128X64 2203588 PHOENIX CONTACT Washer/ring
HCS-C MINI-P WIN 2,0 FR128X64
2203588
PHOENIX CONTACT
1 Pcs.
Washer/ring
Acrylic glass, satin, black printed frame, for 128x64 screen.
Acrylic glass, satin-finished, frame printed black, for display 128x64
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Mounting material |
| Housing type | Handheld housing |
| Housing series | HCS |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 70.4 mm |
| Height | 42.7 mm |
| Depth | 2 mm |
| Dimensions | 60.9 mm x 31.9 mm |
Material specifications
| Color (Housing) | transparent |
| Housing material | PMMA |
Environmental and real-life conditions
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Thermal stability / ball thrust test | |
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 80 °C |
| Test duration | 1 h |
| Force | 20 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
