View larger
Images are for illustrative purposes only. Please refer to data sheet for details

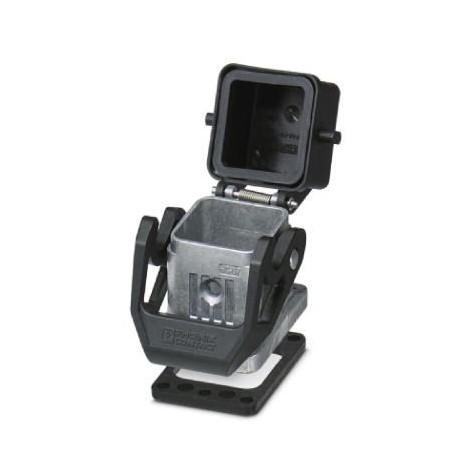

HC-STA-D07-BWSCF-EL-AL 1419251 PHOENIX CONTACT Housing
HC-STA-D07-BWSCF-EL-AL
1419251
PHOENIX CONTACT
1 Pcs.
Housing
Recessed housing D7, with longitudinal flange, material: Die-cast aluminum, seawater resistant, protective cap material: PA, height: 25.5 mm, cable gland: without, protective cover: yes, Standard, for female inserts
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1419251 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 511 (C-2-2017) |
| GTIN | 4055626159829 |
| Weight per Piece (excluding packing) | 26.800 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 25.5 mm |
|---|---|
| Width | 34.2 mm |
| Length | 24.2 mm |
| Length of the assembly cutout | 21 mm |
| Width of the assembly cutout | 21 mm |
Ambient conditions
| Degree of protection (IP) | IP66 (with locked protective cover) |
|---|---|
| IP67 (when plugged in) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
|---|---|
| Size | D7 |
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking type | with single locking latch |
| Screw connection | none |
| Protective cover | yes |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | PA |
| Material, protective cover | PA |
| Assembly instructions | For mounting socket inserts |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
