View larger
Images are for illustrative purposes only. Please refer to data sheet for details

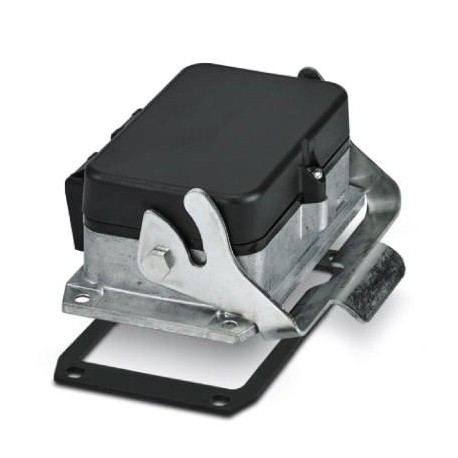

HC-STA-B48-BWSC-EMC-AL 1424864 PHOENIX CONTACT Housing
HC-STA-B48-BWSC-EMC-AL
1424864
PHOENIX CONTACT
1 Pcs.
Housing
Recessed housing B48, with longitudinal flange, material: Injected cast aluminum, seawater resistant, protective cap material: PA, height: 39.4 mm, cable gland: without, protective cover: yes, Standard, with flat gasket
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424864 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626382692 |
| Weight per Piece (excluding packing) | 629.300 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 39.4 mm |
|---|---|
| Width | 99.2 mm |
| Length | 162 mm |
| Length of the assembly cutout | 117 mm |
| Width of the assembly cutout | 81 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP66 (with locked protective cover) |
|---|---|
| IP67 (when plugged in) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | B48 |
|---|---|
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking type | with single locking latch |
| Torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Screw connection | none |
| Protective cover | yes |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | Polyamide |
| Material, protective cover | PA |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 99.2 mm |
| Height (EF000040) | 39.4 mm |
| Depth (EF000049) | 162 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Uncoated |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | Yes |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
