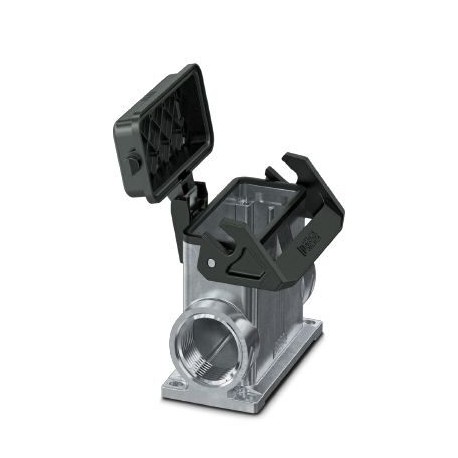

HC-STA-B16-SHWSC-2SSM32-ELC-AL 1082590 PHOENIX CONTACT Box mounting bases B16, with single locking latch, ma..

HC-STA-B16-SHWSC-2SSM32-ELC-AL

1082590

PHOENIX CONTACT

1 Pcs.

Box mounting bases B16, with single locking latch, material: Die-cast aluminum, salt water resistant, protective cover material: PA, cable outlets: 2, lateral, height: 84.7 mm, cable gland: none, support sleeve: no, 2x M32, protective cover: yes, Standard B16 socket housing, with longitudinal flange, material: Die-cast aluminum, seawater resistant, protective cap material: PC, cable outlets: 2, side, 2x M32, height: 84.7 mm, cable gland: without, protective cover: yes, Standard

Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1082590
Packing unit1 pc
Catalog pagePage 619 (C-2-2019)
GTIN4055626816272
Weight per Piece (excluding packing)420.000 g
Custom tariff number85389099
Country of originCN (China)

Drawings

Dimensional drawing

Dimensional drawing
Dimensional drawing

Back to top

Dimensions

Height84.7 mm
Width57 mm
Length117.5 mm
Back to top

Ambient conditions

Degree of protection (IP)IP66 (with closed protective cover)
IP67 (when plugged in)
Degree of protection (NEMA)4 (UL 50e)
4X (UL 50e)
12 (UL 50e)
Ambient temperature (operation)-40 °C ... 125 °C
Back to top

General

NoteFor contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K
SizeB16
Housing typeBox mounting bases
Colorgray aluminum
Locking typewith single locking latch
No. of cable outlets2
Cable outletlateral
Screw connectionnone
Type of the screw connection2x M32
Protective coveryes
Housing materialDie-cast aluminum, salt water resistant
Housing surface materialuncoated
Seal materialNBR, conductive
Material lockPA
Material, protective coverPA
Assembly instructionsOne opening is sealed with a plastic filler plug and can be opened using a screwdriver.
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127440202
eCl@ss 5.127261200
eCl@ss 6.027261200
eCl@ss 7.027440202
eCl@ss 8.027440202
eCl@ss 9.027440202
Back to top

ETIM

ETIM 5.0EC000437
ETIM 6.0EC000437
ETIM 7.0EC000437
Back to top

UNSPSC

UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1082590 Connectors (EC000437)
Feature Name Feature Value
Width (EF000008) 57 mm
Height (EF000040) 84.7 mm
Depth (EF000049) 117.5 mm
Type of housing (EF006980) Socket case
Housing material (EF001596) Aluminium
Coating housing (EF001601) Uncoated
Housing colour (EF000136) Other
Position cable feed (EF008218) Sideways
Position of the shackle (EF008459) Cover
With cable screw gland (EF000735) No
Mounting method of the cable gland (EF012210) Metric
With hinged lid (EF000117) Yes
With distance piece (EF005072) No
With sealing (EF005610) Yes
Number of conduit inlets (EF000437) 2
Type of locking (EF000208) Single locking lever
Operating temperature (EF002393) -40 °C
EMC-version (EF001062) Yes
Degree of protection (IP), mounted (EF007466) IP66
Impact strength (EF004293) IK08

Product Datasheet
