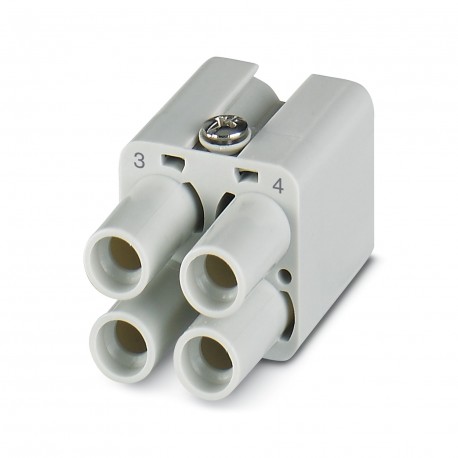

HC-Q04-I-CT-F 1419899 PHOENIX CONTACT Contact insert

HC-Q04-I-CT-F

1419899

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 4, size: D7, number of connections per pole: 1, Female, Crimped connection, 830 V, 40 A, 1.5 mm² ... 6 mm², application: Power, only suitable for plastic housings Contact insert, number of positions: 4, size: D7, number of connections per position: 1, Socket, Crimp connection, 830 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power, Only suitable for plastic housings, four coding options

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Generalfor HC-STA-D07 housing, CK 4,0 crimp contacts
GeneralConnectors may be operated only when there is no load/voltage.
GeneralOrder crimp contacts separately
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-HS
ApplicationPower
TypeD7
Number of positions4
Connection profile4
Contact numbering1 - 4
Number of connections per position1
Contact material typeturned
Data management status
Article revision04
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingjrqskgfhtk.jpg
Width21 mm
Height34.8 mm
Length21 mm
Mechanical characteristics
Contact diameter4 mm
Connection data
Connection technology
Connection technologyCrimp connection
Number of connections per position1
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section1.5 mm² ... 6 mm²
Connection cross section AWG16 ... 10
Tightening torque0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire9 mm (1.5 ... 6.0 mm²)
11 mm (for 10 mm²)
Electrical properties
Rated voltage (III/3)830 V
Rated surge voltage8 kV
Rated current40 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
TestsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Testing
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

ETIM for 1419899 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 4
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) Yes
Contact type (EF001587) Bus
Number of poles (EF001391) 4
Diameter plug-in contact (EF007320) 4 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 40 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 830 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Crimp connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 1.5 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 21 mm
Height (EF000040) 34.8 mm
Depth (EF000049) 21 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
