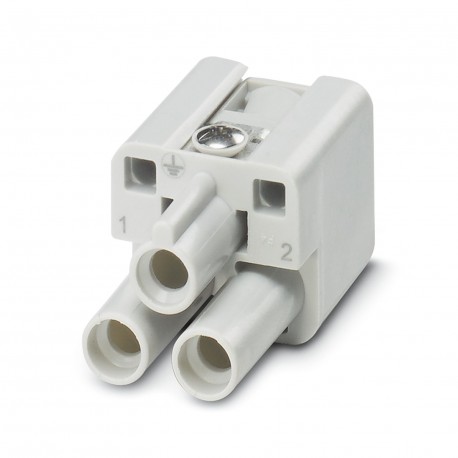

HC-Q02-I-CT-F 1419895 PHOENIX CONTACT Contact insert
HC-Q02-I-CT-F
1419895
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 2+PE, size: D7, number of connections per pole: 1, Female, Crimped connection, 400 V, 40 A, 1.5 mm² ... 6 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1419895 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 507 (C-2-2017) |
| GTIN | 4055626256146 |
| Weight per Piece (excluding packing) | 9.400 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Note | For HC-D7 housing, crimp contacts CK 4,0. Crimp contacts not included in scope of supply. |
|---|---|
| Connection method | Crimp connection |
| Number of connections per position | 1 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 2+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D7 |
| Contact numbering | 1 - 2 |
| Conductor cross section | 1.5 mm² ... 6 mm² |
| Connection cross section AWG | 16 ... 10 |
| Stripping length of the individual wire | 9 mm (1.5 ... 6.0 mm²) |
| 11 mm (for 10 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Standards and Regulations
| Constructional and testing regulations | DIN VDE 0627/86 |
|---|---|
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 2 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 2 |
| Diameter plug-in contact (EF007320) | 4 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 40 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 21 mm |
| Height (EF000040) | 34.8 mm |
| Depth (EF000049) | 21 mm |
