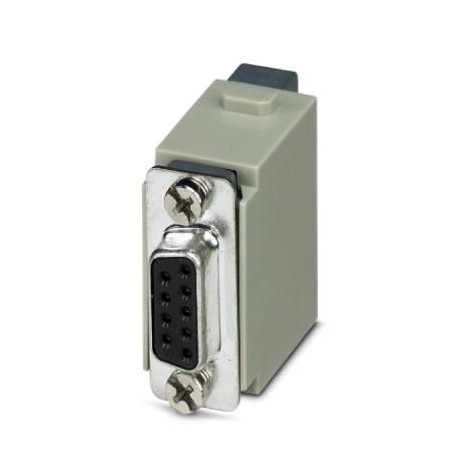

PHOENIX CONTACT HC-M-DSUB 09-UT-F HC-M-DSUB 09-UT-F 1417307 PHOENIX CONTACT Contact insert module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-M-DSUB 09-UT-F 1417307 PHOENIX CONTACT Contact insert module

HC-M-DSUB 09-UT-F

1417307

PHOENIX CONTACT

1 Pcs.

Contact insert module Contact insert module, number of poles: 9, type: D-SUB9, Female, Screw connection, 48 V, 1 A, 0.08 mm² ... 0.5 mm², application: Data

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1417307
Packing unit1 pc
Catalog pagePage 575 (C-2-2017)
GTIN4055626112497
Weight per Piece (excluding packing)38.500 g
Custom tariff number85389099
Country of originCN (China)

Dimensions

Height35.7 mm
Width34.2 mm
Length14.6 mm

Electrical characteristics

Rated voltage (III/3)50 V (D-SUB)
Rated current1 A
Rated surge voltage0.8 kV
Connection profile9

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Mechanical characteristics

Conductor cross section0.08 mm² ... 0.5 mm²
Connection cross section AWG28 ... 20
Stripping length of the individual wire4.2 mm
Tightening torque0.03 Nm ... 0.05 Nm
Contact diameter1 mm
Insertion/withdrawal cycles≥ 500
Minimum housing height72 mm

General

NoteFor HEAVYCON housing type B6 to B48, HC-M-B...MF-... module carrier frame required
TypeD-SUB 9
SeriesHC-M-DSUB-U
Colorlight gray
Number of module slots1
Connection methodScrew connection
Contact typeturned
Flammability rating according to UL 94V0
Degree of pollution3
Overvoltage categoryIII
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
Use of HC-CST-MOD (1636127) coding pins and HC-CBU-MOD (1636130) coding sockets has been prescribed.
Connection

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC
Phase conductor materialZinc alloy

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1417307 Connectors (EC000438)
Feature Name Feature Value
Contact insert without contacts (EF007324) No
Contact type (EF001587) Other
Number of poles (EF001391) 9
Diameter plug-in contact (EF007320) 1 mm
Material connector insert (EF007545) Other
Rated current In (EF008250) 1 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section multi-wired (EF007343) 0.08 mm²
Material of contact surface (EF004020) Silver
Material of contact insert (EF008521) Other
Material contact (EF007544) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34.2 mm
Height (EF000040) 35.7 mm
Depth (EF000049) 14.6 mm
