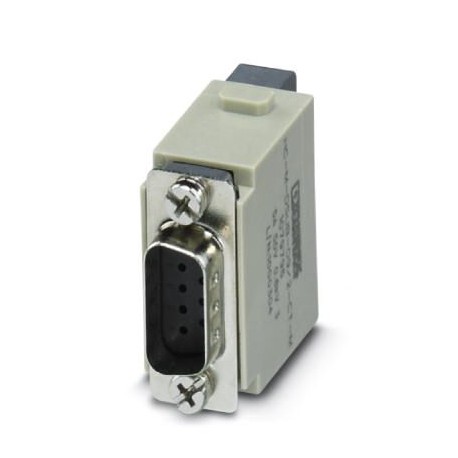

HC-M-DSUB-09/2-CT-F 1079793 PHOENIX CONTACT HEAVYCON socket contact insert module, D-SUB 9, crimp connection..
HC-M-DSUB-09/2-CT-F
1079793
PHOENIX CONTACT
1 Pcs.
HEAVYCON socket contact insert module, D-SUB 9, crimp connection, for two conductors, without crimp contact
Female contact bracket module HEAVYCON, D-SUB 9, crimp connection, for two wires, without crimp contacts
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1079793 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 587 (C-2-2019) |
| GTIN | 4055626800431 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Electrical characteristics
| Rated voltage (III/3) | 50 V |
|---|---|
| Rated current | 5 A |
| Rated surge voltage | 0.8 kV |
| Connection profile | 9 |
Mechanical characteristics
| Conductor cross section | 0.09 mm² ... 0.82 mm² |
|---|---|
| Connection cross section AWG | 28 ... 18 |
| Stripping length of the individual wire | 4.2 mm |
| Contact diameter | 1 mm |
| Insertion/withdrawal cycles | ≥ 500 |
| Minimum housing height | 52 mm |
General
| Note | For module carrier frames HC-M-B...-MF-H/HC-M-B...-MF-B, for two conductors |
|---|---|
| Type | D-SUB 9 |
| Series | HC-M-DSUB-C |
| Number of module slots | 1 |
| Connection method | Crimp connection |
| Contact type | turned |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Assembly instructions | Housing height >= 52 mm. Plug-in connections may only be operated only when there is no load/voltage. Use of HC-CST (1676857) coding pins and HC-CBU (1676860) coding sockets has been prescribed. |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag |
| Contact carrier material | PC |
| Phase conductor material | Zinc alloy |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440218 |
|---|---|
| eCl@ss 5.1 | 27261200 |
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440207 |
| eCl@ss 9.0 | 27440218 |
| Feature Name | Feature Value |
|---|---|
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Other |
| Number of poles (EF001391) | 9 |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material connector insert (EF007545) | Other |
| Rated current In (EF008250) | 5 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.09 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.09 mm² |
| Material of contact surface (EF004020) | Silver |
| Material of contact insert (EF008521) | Other |
| Material contact (EF007544) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34.2 mm |
| Height (EF000040) | 35.7 mm |
| Depth (EF000049) | 14.6 mm |
