> PHOENIX CONTACT > Industrial plug-in connectors/interfaces > 1182094

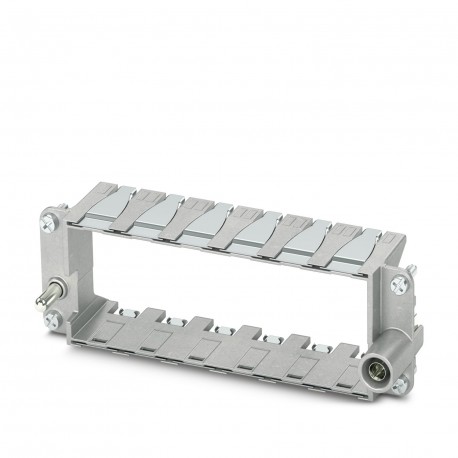

PHOENIX CONTACT HC-M-B24-MFH-B HC-M-B24-MFH-B 1182094 PHOENIX CONTACT Module Support Framework HC-M-B24-MFH-B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-M-B24-MFH-B 1182094 PHOENIX CONTACT Module Support Framework HC-M-B24-MFH-B

HC-M-B24-MFH-B

1182094

PHOENIX CONTACT

1 Pcs.

Module Support Framework - HC-M-B24-MFH-B Frame for module support, size: B24, type : for recessed side (a, b, c, ...), 4 mm² ... 6 mm², application: Module support frame Module carrier frame, size: B24, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame

Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralThis product replaces 1417402 HC-M-B24-MF-B
Product properties
Product typeModule carrier frame
SeriesHC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
ApplicationModule carrier frame
TypeB24
B48
Number of module slots6
Typefor the panel mounting side (a, b, c, ...)
Frame typeModule carrier frame
Data management status
Article revision03
Connection data
Conductor connection
Conductor cross section4 mm² ... 6 mm² (for PE conductor - power side)
1 mm² ... 2.5 mm² (for PE conductor – control side)
Connection cross section AWG12 ... 10 (for PE conductor - power side)
18 ... 14 (for PE conductor – control side)
Tightening torque0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Dimensions
Dimensional drawingtpwmzqsymj.jpg
Width34.9 mm
Height36 mm
Length111 mm
Material specifications
Contact carrier materialDie-cast zinc alloy
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C
Mounting
Assembly noteHC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm².
Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm
When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module

ETIM for 1182094 Connectors (EC002312)
Feature Name Feature Value
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Inflammability class of insulation material according to UL94 (EF002521) Other
