View larger
Images are for illustrative purposes only. Please refer to data sheet for details

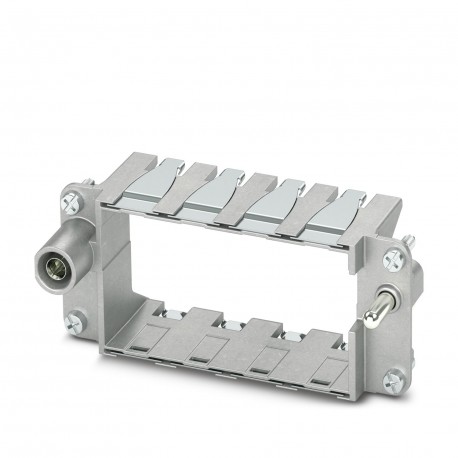

HC-M-B16-MFH-H 1182093 PHOENIX CONTACT Framework for module support HC-M-B16-MFH-H
HC-M-B16-MFH-H
1182093
PHOENIX CONTACT
1 Pcs.
Framework for module support - HC-M-B16-MFH-H
Frame for module support, size: B16, type : for aerial side (A, B, C, ...), 4 mm² ... 6 mm², application: Module support frame
Module carrier frame, size: B16, type : for the sleeve side (A, B, C, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | This product replaces 1417405 HC-M-B16-MF-H |
Product properties
| Product type | Module carrier frame |
| Series | HC-M-B |
| HC-M-02 | |
| HC-M-03 | |
| HC-M-03/04 | |
| HC-M-04 | |
| HC-M-05 | |
| HC-M-06 | |
| HC-M-08 | |
| HC-M-08-GBIT | |
| HC-M-12 | |
| HC-M-17 | |
| HC-M-20 | |
| HC-M-25 | |
| HC-M-DSUB | |
| HC-M-EMV | |
| HC-M-HV | |
| HC-M-HS | |
| HC-M-00 | |
| Application | Module carrier frame |
| Type | B16 |
| B32 | |
| Number of module slots | 4 |
| Type | for the sleeve side (A, B, C, ...) |
| Frame type | Module carrier frame |
| Data management status | |
| Article revision | 03 |
Connection data
| Conductor connection | |
| Conductor cross section | 4 mm² ... 6 mm² (for PE conductor - power side) |
| 1 mm² ... 2.5 mm² (for PE conductor – control side) | |
| Connection cross section AWG | 12 ... 10 (for PE conductor - power side) |
| 18 ... 14 (for PE conductor – control side) | |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
Dimensions
| Dimensional drawing |  |
| Width | 34.9 mm |
| Height | 36 mm |
| Length | 84.5 mm |
Material specifications
| Contact carrier material | Die-cast zinc alloy |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Assembly note | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
| Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm | |
| When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module |
| Feature Name | Feature Value |
|---|---|
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
