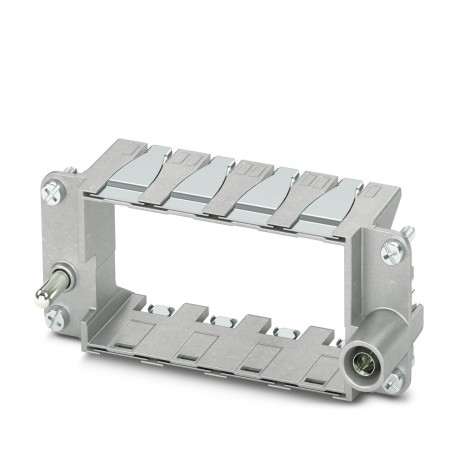

HC-M-B16-MFH-B 1182090 PHOENIX CONTACT Module Support Framework HC-M-B16-MFH-B

HC-M-B16-MFH-B

1182090

PHOENIX CONTACT

1 Pcs.

Module Support Framework - HC-M-B16-MFH-B Frame for module support, size: B16, type : for recessed side (a, b, c, ...), 4 mm² ... 6 mm², application: Module support frame Module frames, dimensions: B16, design: per flush-mounted side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module frames

Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General notesThis product replaces item 1417400 HC-M-B16-MF-B
Article features
Product TypeModule frames
SeriesHC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
ApplicationModule frames
typeB16
B32
Number of module connection points4
Executionfor flush-mounted side (A, B, C, ...)
Frame typeModule frames
Data maintenance status
Article review03
Connection data
Conductor connection
Connection section4 mm² ... 6 mm² (for PE conductor - power side)
1 mm² ... 2.5 mm² (For PE conductor – controller side)
AWG Connection Section12 ... 10 (for PE conductor - power side)
18 ... 14 (For PE conductor – controller side)
Tightening torque0.5 Nm ... 0.8 Nm (Fixing screws for mounting in the HEAVYCON enclosure)
dimensions
Dimensioned Drawingsnsfswzyaw.jpg
width34.9 mm
height36 mm
length84.5 mm
Material information
Contact Insert MaterialZinc Die Cast Alloy
Mechanical characteristics
Mechanical data
Manoeuvring cycles≥ 500
Environmental and electrical life conditions
Environmental conditions
Ambient temperature (operating)-40 °C ... 125 °C
Montage
Mounting NoteHC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm².
Use suitable end protectors (PE connection screws without wire protection) with PE wires, max. thread length of the screw connection 12 mm in cases without pins with side exit
When inserting the module frame into metal enclosures, the connection of the PE protective conductor must be ensured via the PE connection provided on the module frame or a special metal PE module.

ETIM for 1182090 Connectors (EC002312)
Feature Name Feature Value
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Inflammability class of insulation material according to UL94 (EF002521) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
