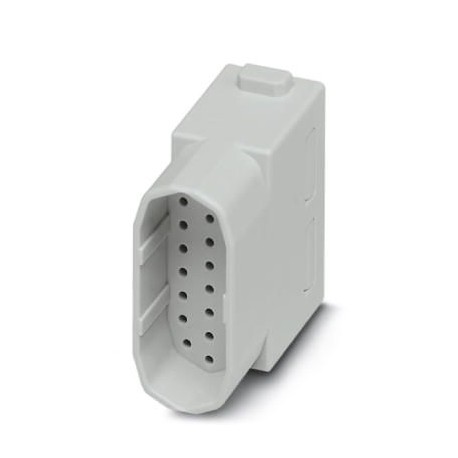

HC-M-25-CT-M 1414374 PHOENIX CONTACT Contact insert module

HC-M-25-CT-M

1414374

PHOENIX CONTACT

5 Pcs.

Contact insert module Contact insert module, number of poles: 25, power contacts: 0, control contacts: 25, Male, Crimped connection, 30 V, 4 A, 0.08 mm² ... 0.5 mm², application: Signal

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1414374
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 575 (C-2-2017)
GTIN4055626025278
Weight per Piece (excluding packing)8.640 g
Custom tariff number85389099
Country of originPL (Poland)

Dimensions

Height34 mm
Width34.2 mm
Length14.6 mm

Electrical characteristics

Rated voltage (III/3)50 V
Rated current4 A
Rated surge voltage0.8 kV
Connection profile25

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Mechanical characteristics

Conductor cross section0.08 mm² ... 0.5 mm²
Connection cross section AWG28 ... 20
Stripping length of the individual wire4.2 mm
External cable diameter2.2 mm
Contact diameter1 mm
Insertion/withdrawal cycles≥ 500
Minimum housing height52 mm

General

NoteFor HEAVYCON housing type B6 to B48, HC-M-B...MF-... module carrier frame required
SeriesHC-M-25
Colorlight gray
Number of module slots1
Connection methodCrimp connection
Contact typeturned
Flammability rating according to UL 94V0
Degree of pollution3
Overvoltage categoryIII
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required

Material data

Contact materialCopper alloy
Contact surface materialAu
Contact carrier materialPC

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1414374 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 25
Contact insert without contacts (EF007324) Yes
Contact type (EF001587) Pin
Number of poles (EF001391) 25
Diameter plug-in contact (EF007320) 1 mm
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 30 V
Rated surge voltage (EF002993) 0.8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Crimp connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section multi-wired (EF007343) 0.08 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Other
Material contact (EF007544) Copper
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 14.741519 mm
Height (EF000040) 33.85 mm
Depth (EF000049) 34.08261 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
